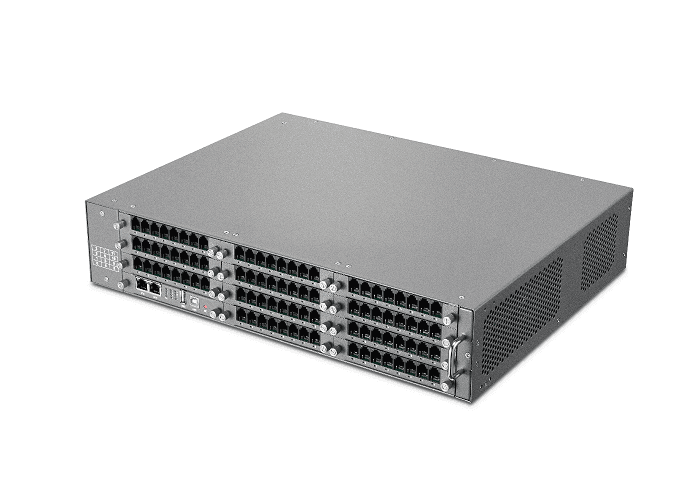

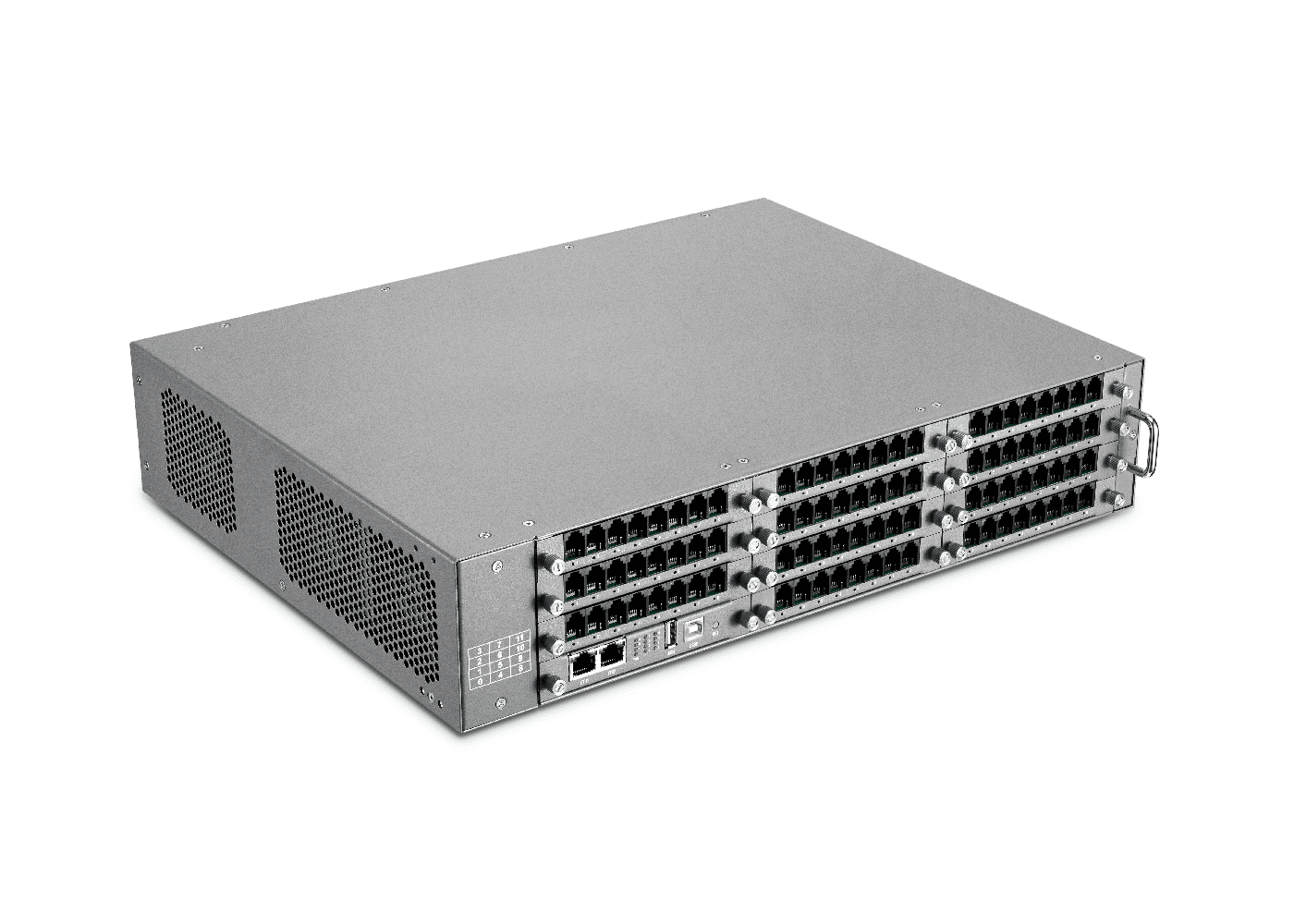

OpenVox VS-GW2120 V2 FXS/FXO Analog Gateway

The VS-GW2120 V2 Analog Gateway, an upgraded product in the VS-GW2120 series, is now the highest-performance open-source Asterisk-based VoIP gateway solution for SMEs and SOHOs. With a user-friendly graphical interface and a unique modular design, users can easily configure their custom gateway. Secondary development can also be performed via AMI (Asterisk Management Interface).

There are three models in the new VoxStack Gateway series: VS-GW1202 V2, VS-GW1600 V2 and VS-GW2120 V2 Analog Gateway. The VS-GW2120 V2 Analog Gateway supports up to 88 FXS/FXO channels and maximum-load concurrency, meaning that 88 channels can be used for simultaneous calls. In addition, it can also support up to 55 concurrent calls with transcoding and EC in synchronization. The modular-design analog gateways were developed to interconnect a wide selection of codecs, including G.711A, G.711U, G.729, G.722, G.726 & ILBC, to quickly reduce telecommunications expenses and maximize savings. The analog gateway is equipped with a LAN switch card that enables stacking during hardware upgrades.

The VS-GW2120 V2 Analog Gateway uses the standard SIP protocol and is compatible with leading IMS/NGN platforms, IPPBX and SIP servers, supporting most VoIP operating platforms such as Asterisk, Elastix, 3CX, FreeSWITCH, Broadsoft, etc.

Technical specifications:

8/16/24/32/40/48/56/64/72/80/88 FXS/FXO ports

CPU: 4 cores, 1,33 GHz

RAM: 1 G

Network ports: 2

USB port: 1

Serial port: 1

Reset button: 1

Storage temperature range: -20~70℃

Operating temperature range: 0~40℃

Operating humidity range: 10 %~90 % non-condensing

Power supply: 100-240 V/1-2 A

Maximum consumption: 60 W

Dimensions: 48,3 cm × 33,1 cm × 8,8 cm

Weight: 5710 g

Software & Platform:

Linux OS

Certification

CE
